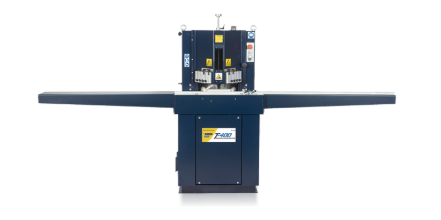

ALFA T400 ELECTR/PNEUM DOUBLE MITRE SAW 3 PHASE

Product Code: MAC/0760Product Code: MAC/0760

This heavy duty drop saw is built for medium to high production environments. Its unique pneumatic control system results in a very smooth down-stroke movement, precise cut, and a quick return process.

Add to wishlist
SKU: MAC/0760 Categories: , Tags: , , ,
The T-400 Saw is designed to cut 45 degree mitres precisely for picture framing and woodworking applications such as windows, doors, and furniture components. The T-400 can handle all wood, plastic, and metal materials with a moulding height up to 3 ½" (80mm) and a moulding width up to 3.937" (100mm). Two saw blades are fixed at 45 degree angles and vertically move up and down. With each stroke, the two mitres are cut from the moulding with the least amount of scrap. During the cutting process, the moulding is held firmly in place by four pneumatic clamps ensuring high quality cutting._x000D_
Safety Features
_x000D_
_x000D_
_x000D_
    _x000D_
  • Fully enclosed work unit with no external moving parts
    • _x000D_
  • Emergency push button cut-off switch
    • _x000D_
  • Front door guard micro cut-off switch
    • _x000D_
  • Adjustable polycarbonate front guard depending on mould thickness
    • _x000D_
  • Two-handed operation to actuate saw cutting process
    • _x000D_
  • Motor brake system
    • _x000D_
  • Fail-safe descending head
    • _x000D_
  • CE Compliant
    • _x000D_
_x000D_
Electrical & Pneumatic Requirements
_x000D_
_x000D_
_x000D_
    _x000D_
  • Dust Collection Scrap Chute - 2 Ports 3 ½” (80mm)
    • _x000D_
  • Power Requirements 3 Phases – 230/400 Volt – 50/60Hz - 3Kw
    • _x000D_
  • Air Requirements 100 psi - 4 cfm - 8Nl
    • _x000D_
  • Oil filter pressure regulator
    • _x000D_
  • Weight: 1,102 lbs. (500kg)
    • _x000D_
  • Dimensions: 39 3/8” (1000mm) x 39 3/8” (1000mm) x 71” (1800mm)
    • _x000D_
_x000D_
Replacement & Accessory Items
_x000D_
_x000D_
_x000D_
    _x000D_
  • Saw Replacement Blade  for wood and soft materials – 400mm x 30mm
    • _x000D_
  • Saw Replacement Blade for aluminum – 400mm x 30mm
    • _x000D_
  • Measurement Table Extension – Right – 48” (1220mm)
    • _x000D_
  • Measurement Table Extension – Left – 48” (1220mm)
    • _x000D_
  • T-400 Auto Measuring Gauge System
    • _x000D_
  • Mist Spray Coolant System for Metal Cutting
    • _x000D_
_x000D_ See this Technical Document_x000D_ _x000D_
